Sustainable Bolting and Bolt Removal

Single Point Lower-offs

One of the major causes of accidents in sport climbing is failure to thread and re-tie correctly at the lower-off and with the availability of safe and reliable no-thread equipment these can easily be avoided.

Our wide range of lower-offs includes traditional rings with our innovative parallel eye hangers, stainless steel karabiners, the well established "pigtail" design and our own Monster Hook, the safest, strongest and most durable direct hang-in lower-off on the market.

We offer this wide variety of both glue-in and bolt-in lower-offs with differing material specifications to allow customers to choose between economy, durability and visual impact.



We recommend always fitting two bolts at a lower-off or belay point, usually one lower-off and one standard bolt.

Strength and Tests
Bolt Selection
Orders, Delivery and Discounts
Protection Bolts
Belay Bolts
Sea Water Series
Single Point Lower-offs
Chain Extenders
Chain Sets
Stainless Steel Pitons
Maillons, Rings and Chain
Via Ferrata Equipment
Glue and glue guns
Accesories
Service and support
Terms and conditions

sales@bolt-products.com

Glue-in

New for 2009

Solid Leg Lower-Off Bolts

We are introducing our new range of solid leg bolts as an alternative to all our current twisted leg bolts in standard and large eye as well as parallel eye for use in any of our lower-off and chain set applications.

The advantages and disadvantages of the different leg designs are explained in the Protection Bolt page of this catalogue.

We are redesigning the lower-off and chain set pages to make them simpler to use, until this is completed please ask us for details and pricing. The lower-off shown is an 8mm X 100mm Parallel Eye Bolt with 12mm Ring.

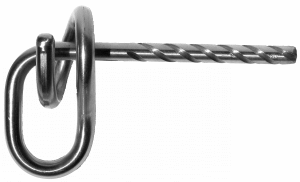

Monster Hook

The ultimate in one-piece lower-offs, simple, safe rope hang- in, unbelievable strength and an anticipated life span of well over 25 years used as a toprope anchor.
Developed for both sport climb lower-offs and as belay/ abseil points on multi-pitch routes this 12mm bar stainless anchor is constructed without welds or moving parts for long term reliability.

A completely safe rope containment system ensures that once in, even if the climber moves above and falls the rope stays safely in place.

The machined triple-start grooves give excellent glue distribution, sufficient glue mass for full cure and outstanding pull out resistance- normally well over 60kN in medium limestone!

Failure Load 58,4kN (to rope release)

12mm dia AISI 304 (A2) or AISI 316 (A4) stainless steel.
EN959
12mm dia hole or larger.

Order Code                Description                                                        Price
[MH 120A2]              120mm shaft length (normal applications)            €12,50
[MH 150A2]              150mm shaft (for sandstone)                              €13,50

[MH 120A4]              120mm shaft length (normal applications)            €13,75
[MH 150A4]              150mm shaft (for sandstone)                              €14.85

Any other length to order

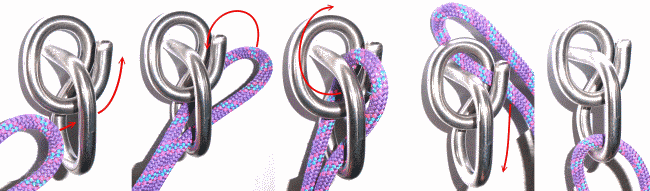

And this is how to thread the rope:- Push a bight up through the eye and over the hook, pull back down and then up over the top as shown.







10mm & 12mm Rod „Pigtail“

A classic amongst lower-offs, easy to use,safe and readily replaceable.
We manufacture these from both 10mm and 12mm rod for even longer life and resistance to bending open.

Hammer fit over any of our bolts or hangers or your existing bolt.

For security against theft we can supply these welded shut on any of our range of bolts.

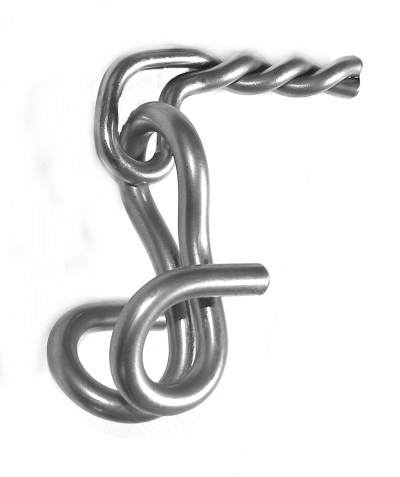

(Shown is a 10mm pigtail fitted to an 8mm standard bolt)

Failure Strain-10mm rod-15kN (to rope release)

Failure Strain-12mm rod-35kN (to rope release)

12mm-EN959.

AISI 304 (A2) or AISI 316 (A4) Stainless Steel

Order Code                Description                                                        Price
[PG-10A2]                 10mm Pigtail                                                      €8,55
[PG- 12A2]                12mm Pigtail                                                      €10,00

[PG-10A4]                 10mm Pigtail                                                      €9,40
[PG- 12A4]                12mm Pigtail                                                      €11,00
Welded into any of our bolts:- add bolt price + €1,00


6mm or 8mm Rod Twisted Leg Bolt with 8, 10 or 12mm Ring

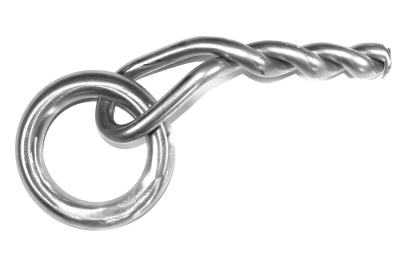

(Shown is a 12mm ring fitted to an 8mm x 80mm bolt)

This unique parallel eye design removes the need for a second ring but still allows the ring to stand at 90° to the rock for chafe-free running of the rope.
The eye is dimensioned to take additional karabiners and specially angled so that in use the back of the ring rests on the rock in use eliminating flexing of the bolt.
The loose ring will rotate in use reducing wear and extending its life.
All rings have a nominal internal diameter of 45mm.

Breaking Strain-over 30kN
EN959.

AISI 304 (A2) or AISI 316(A4) Stainless Steel
6mm Bolt-12mm dia. Hole. 8mm Bolt-16mm Hole

Please specify whether 304 (A2) or 316 (A4) required.

Order Code           Description                                                       Price A2               Price A4
[6-80- 8R]             6mm bolt, 80mm shaft, 8mm ring                       €11,21                 €11,77
[6-100-8R]            6mm bolt, 100mm shaft, 8mm ring                     €11.41                 €11,98
[6-150-8R]            6mm bolt, 150mm shaft, 8mm ring                     €11,91                 €12,50
[6-80- 10R]           6mm bolt, 80mm shaft, 10mm ring                     €12,94                 €13,59
[6-100-10R]          6mm bolt, 100mm shaft, 10mm ring                   €13,14                 €13,80
[6-150-10R]          6mm bolt, 150mm shaft, 10mm                          €13,64                 €14,32
[6-80-12R]            6mm bolt, 80mm shaft, 12mm ring                     €14,67                 €15,40
[6-100-12R]          6mm bolt, 100mm shaft, 12mm ring                   €14,87                 €15,61
[6-150-12R)          6mm bolt, 150mm shaft, 12mm ring                   €15,37                 €16,14

[8-80- 8R]             8mm bolt, 80mm shaft, 8mm ring                       €11,71                 €12,30
[8-100-8R]            8mm bolt, 100mm shaft, 8mm ring                     €11,91                 €12,51
[8-150-8R]            8mm bolt, 150mm shaft, 8mm ring                     €12,41                 €13,03
[8-80- 10R]           8mm bolt, 80mm shaft, 10mm ring                     €13,44                 €14,11
[8-100-10R]          8mm bolt, 100mm shaft, 10mm ring                   €13,64                 €14,32
[8-150-10R]          8mm bolt, 150mm shaft, 10mm ring                   €14,14                 €14,85
[8-80-12R]            8mm bolt, 80mm shaft, 12mm ring                     €15,17                 €15,93
[8-100-12R]          8mm bolt, 100mm shaft, 12mm ring                   €15,37                 €16,13
[8-150-12R)          8mm bolt, 150mm shaft, 12mm ring                   €15,87                 €16,66

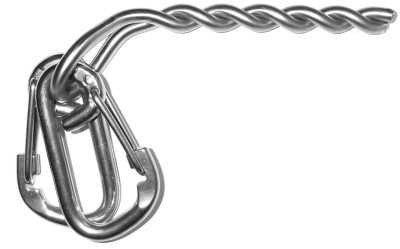

6mm or 8mm Rod Twisted Leg Parallel Eye Bolt with 1 or 2 x 10/12mm S.S. Wiregate Karabiner(s)

Note. These karabiners are now supplied with a bent gate for easier clipping, see Karabiners in Maillons page of this catalogue.



This unique design removes the need for an intermediate ring but still allows the captive karabiner to stand at 90° to the rock for chafe-free running of the rope.

Fitted with one or two10mm wiregate karabiners back-to-back for absolute security. Each karabiner rated to 30kN (our tests).
The eye is dimensioned to take additional karabiners and specially angled so that in use the back of the karabiners rests on the rock in use eliminating flexing of the bolt.

These use a 10mm or 12mm rod stainless steel wiregate karabiner. Normal gate karabiners which are effectively hanging upside down and resting on the cliff get jammed with water-borne debris in heavy rain, for this reason we only use wiregates.

For safety we strongly recommend the dual karabiner setup to reduce the chance of unclipping but some customers prefer single. Single karabiners should never be used for top-roping.



Breaking Strain 10mm Karabiner- 31kN, 12mm Karabiner-40kN.

EN959.

Bolt - AISI 304 (A2) or AISI316 (A4) Stainless Steel
10mm or 12mm Wiregate karabiner AISI 316 (A4)
12mm or 16mm dia. Hole.

Please specify whether 304 (A2) or 316 (A4) required.

Order Code             Description                                                         Price A2 Bolt               Price A4 Bolt

Single Karabiner

[6-80-10K1]           80mm shaft length (normal rock)                        €13,42                           € 13,59
[6-100-10K1]         100mm (soft rock)                                            €13,62                           € 13,80
[6-150-10K1)         150mm (sandstone)                                           €14,12                           € 14,33

[8-80-10K1]            80mm shaft length (normal rock)                       €13,92                           €14,12
[8-100-10K1]         100mm (soft rock)                                            €14,12                           €14,33
[8-150-10K1]         150mm (sandstone)                                           €14,62                           €14,85

Double Karabiner
[6-80-10K2]           80mm shaft length (normal rock)                        €23,40                          €23,57
[6-100-10K2]         100mm (soft rock)                                            €23,60                          €23,78
[6-150-10K2)         150mm (sandstone)                                           €24,10                          €24.31

[8-80-10K2]            80mm shaft length (normal rock)                       €23,90                          €24.10
[8-100-10K2]         100mm (soft rock)                                            €24,10                          €24,31
[8-150-10K2]         150mm (sandstone)                                           €24,60                          €24,83

12mm Karabiner Add €5,00 per Karabiner

6mm Parallel Eye Bolt

For those wanting to build their own chainsets or lower-offs we supply these bolts with the eye set parallel to the rock.

As standard they have a down angle of 45° but this can be easily modified.

6mm-Breaking Strain-30kN
AISI 304 (A2) or AISI 316 (A4) Stainless Steel
EN959.
12mm dia. hole.

Order Code                Description                                                       Price
[6P-80-12A2]            80mm shaft length (normal rock)                       €3,45
[6P-100-12A2]          100mm (soft rock)                                           €3,65
[6P-150-12A2]          150mm (sandstone)                                          €4,15


[6P-80-12A4]            80mm shaft length (normal rock)                       €3,62
[6P-100-12A4]          100mm (soft rock)                                           €3,83
[6P-150-12A4]          150mm (sandstone)                                          €4,36

8mm Parallel Eye Bolt

As above but 8mm rod.

8mm- Breaking Strain-45kN

AISI 304 (A2) or AISI 316(A4) Stainless Steel
EN959.
16mm dia. hole.

Order Code                Description                                                     Price
[8P-80-16A2]            80mm shaft length (normal rock)                       €3,95
[8P-100-16A2]          100mm (soft rock)                                            €4,15
[8P-150-16A2)          150mm (sandstone)                                          €4,65


[8P-80-16A4]            80mm shaft length (normal rock)                       €4,15
[8P-100-16A4]          100mm (soft rock)                                            €4,36
[8P-150-16A4]          150mm (sandstone)                                          €4,88



Bolt-In

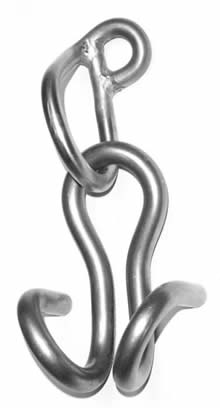

Belay Hanger /10mm & 12mm Pigtail

Our rod belay hangers fitted with a pigtail for easy, safe and durable lower-off points.
From 6 or 8mm rod and 10 or 12mm bolt eye as required.
The pigtail can be welded shut for security against theft.

Breaking Strain - 6mm Hanger 30kN
Breaking Strain - 8mm Hanger 45kN
Failure Strain- Pigtail (to rope release) 10mm Pigtail-15kN. 12mm Pigtail- 35kN


AISI 304 (A2) or AISI 316 (A4) Stainless Steel
12mm Pigtail-EN959

Please specify whether 304 (A2) or 316 (A4) required.

Order Code           Description                                                                                   Price A2            Price A4
[BH6-10P-10]       6mm rod hanger for10mm bolt with 10mm Pigtail                          €13,00               €13,65
[BH6-10P-12]       6mm rod hanger for12mm bolt with 10mm Pigtail                          €13,00               €13,65
[BH8-10P-12]       8mm rod hanger for12mm bolt with 10mm Pigtail                          €14,15               €14,86
[BH6-12P-10]       6mm rod hanger for10mm bolt with 12mm Pigtail                          €14,45               €15,17
[BH6-12P-12]       6mm rod hanger for12mm bolt with 12mm Pigtail                          €14,45               €15,17
[BH8-12P-12]       8mm rod hanger for12mm bolt with 12mm Pigtail                          €15,50               €16,28
Weld pigtail shut. €1,00

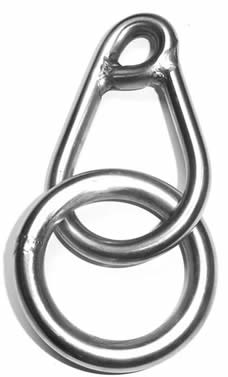

Parallel Eye Bolt Hanger with 8/10/12mm Ring or 2 x 10/12mmWiregateKarabiner.

Note. These karabiners are now supplied with a bent gate for easier clipping, see Karabiners in Maillons page of this catalogue.

This design removes the need for a second ring but still allows the ring or karabiner(s) to stand at 90° to the rock for chafe-free running of the rope.

The eye is dimensioned to take additional karabiners and specially angled so that in use the back of the ring/karabiner rests on the rock in use eliminating flexing of the bolt.

The loose ring will rotate in use, reducing wear and extending its life.

Rings

Breaking Strain - 6mm rod hanger 30kN
Breaking Strain - 8mm rod hanger 45kN

Breaking Strain Rings - over 50kN

EN959

AISI 304 (A2) or AISI 316 (A4) Stainless Steel

Please specify whether 304 (A2) or 316 (A4) required.

Order Code           Description                                                                                   Price A2       Price A4

[BHP6-R8-10]      6mm rod parallel eye hanger for 10mm bolt with 8mm Ring            €12,21          €12,82
[BHP6-R8-12]      6mm rod parallel eye hanger for 12mm bolt with 8mm Ring            €12,21          €12,82
[BHP8-R8-10]      8mm rod parallel eye hanger for 10mm bolt with 8mm Ring            €13,26          €13,92

[BHP8-R8-12]      8mm rod parallel eye hanger for 12mm bolt with 8mm Ring            €13,26          €13,92

[BHP6-R10-10]    6mm rod parallel eye hanger for 10mm bolt with 10mm Ring          €13,94          €14,34
[BHP6-R10-12]    6mm rod parallel eye hanger for 12mm bolt with 10mm Ring          €13,94          €14,34
[BHP8-R10-10]    8mm rod parallel eye hanger for 10mm bolt with 10mm Ring          €14,99          €15,74

[BHP8-R10-12]    8mm rod parallel eye hanger for 12mm bolt with 10mm Ring          €14,99          €15,74

[BHP6-R12-10]    6mm rod parallel eye hanger for 10mm bolt with 12mm Ring          €15,67          €16,45
[BHP6-R12-12]    6mm rod parallel eye hanger for 12mm bolt with 12mm Ring          €15,67          €16,45
[BHP8-R12-10]    8mm rod parallel eye hanger for 10mm bolt with 12mm Ring          €16,72          €17,56

[BHP8-R12-12]    8mm rod parallel eye hanger for 12mm bolt with 12mm Ring          €16,72          €17,56

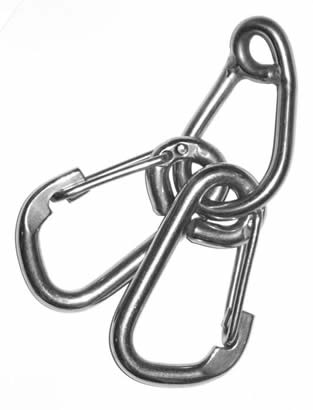

Karabiners

These use a 10mm or 12mm rod stainless steel wiregate karabiner. Normal gate karabiners which are effectively hanging upside down and resting on the cliff get jammed with water-borne debris in heavy rain, for this reason we only use wiregates.

For safety we strongly recommend the dual karabiner setup to reduce the chance of unclipping but some customers prefer single. Single karabiners should never be used for top-roping without a back-up quickdraw in another bolt.

Breaking Strain - 6mm rod hanger 30kN
Breaking Strain - 8mm rod hanger 45kN

Breaking Strain  10mm Karabiner- 31kN

Breaking Strain 12mm Karabiner- 40kN

EN959

Hangers AISI 304 (A2) or AISI 316 (A4) Stainless Steel

Karabiners AISI 316 (A4) Stainless Steel

Please specify whether 304 (A2) or 316 (A4) required.

Order Code           Description                                                                                             Price A2 Hanger        Price A4 Hanger

[BHP6-10K-10]   6mm rod parallel eye hanger for 10mm bolt with 1 x 10mm Karabiner      €14,42                       €14,64
[BHP6-10K-12]   6mm rod parallel eye hanger for 12mm bolt with 1 x 10mm Karabiner      €14,42                       €14,64
[BHP8-10K-10]   8mm rod parallel eye hanger for 10mm bolt with 1 x 10mm Karabiner      €15,47                       €15,75

[BHP8-10K-12]   8mm rod parallel eye hanger for 12mm bolt with 1 x 10mm Karabiner      €15,47                       €15,75



[BHP6-10K-10]   6mm rod parallel eye hanger for 10mm bolt with 2 x 10mm Karabiners     €24,40                       €24,62
[BHP6-10K-12]   6mm rod parallel eye hanger for 12mm bolt with 2 x 10mm Karabiners     €24,40                       €24,62
[BHP8-10K-10]   8mm rod parallel eye hanger for 10mm bolt with 2 x 10mm Karabiners     €25,45                       €25,73

[BHP8-10K-12]   8mm rod parallel eye hanger for 12mm bolt with 2 x 10mm Karabiners     €25,45                       €25,73

12mm Karabiner Add €5,00 per Karabiner



Parallel Eye Bolt Hanger

For those wanting to build their own chainsets or lower-offs we supply these hangers with the eye set parallel to the rock.

As standard they are angled out from the rock at 20° to suit most applications but this can be easily modified.

6mm-Breaking Strain-30kN 8mm- 45kN
AISI 304 (A2) or AISI 316 (A4) Stainless Steel
EN959.

Order Code                Description                                                        Price
[BHP6-10A2]            6mm rod parallel hanger for 10mm bolt               €4,45
[BHP6-12A2]            6mm rod parallel hanger for 12mm bolt               €4,45
[BHP8-10A2]            8mm rod parallel hanger for 10mm bolt               €5,50

[BHP8-12A2]            8mm rod parallel hanger for 12mm bolt               €5,50

[BHP6-10A4]            6mm rod parallel hanger for 10mm bolt               €4,67
[BHP6-12A4]            6mm rod parallel hanger for 12mm bolt               €4,67
[BHP8-10A4]            8mm rod parallel hanger for 10mm bolt               €5,78

[BHP8-12A4]            8mm rod parallel hanger for 12mm bolt               €5,78
