Sustainable Bolting and Bolt Removal

   Chain Extenders

Chain extenders have a multitude of uses:-

Allow clipping a bolt placed too high.

Allowing a bolt to be set over an overhang but clipped from below.

Extending lower-off points when the only good bolt placement is inconveniently situated.

Make installing top ropes easier and safer by setting the bolt at the cliff top but allowing the lower-off to be over the edge to eliminate chafe.

We use only high quality 8mm long link chain with a breaking strain of over 58kN for safety, reliability and long life.

We sell extenders seperately for fitting to existing bolts or fitted into any of our bolts.

Standard chain length is 200mm nominal but any length is available

For maillons and shackles go to Maillons, Rings and Chain

Strength and Tests
Bolt Selection
Orders, Delivery and Discounts
Protection Bolts
Belay Bolts
Sea Water Series
Single Point Lower-offs
Chain Extenders
Chain Sets
Stainless Steel Pitons
Maillons, Rings and Chain
Via Ferrata Equipment
Glue and glue guns
Accesories
Service and support
Terms and conditions

sales@bolt-products.com

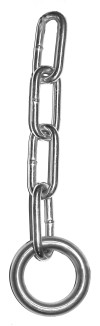

Chain Extender /8mm Ring


Intended as an extender for awkward protection bolt placements such as over the lip of an overhang. 8mm long link chain with 45mm I.D. 8mm rod ring (easier to clip than our 10mm or 12mm ring).

Sold seperately for retrofitting using a maillon or fitted into one of our bolts.

.

Breaking Strain-Over 25kN
EN959

Chain AISI 316 (A4) Stainless Steel
Ring AISI 304 (A2) or AISI 316 (A4) Stainless Steel

Order Code                 Description                                                       Price
[C8-8RA2]                  200mm chain length with 8mm ring                    €14,01

[C8-8RA4]                  200mm chain length with 8mm ring                    €14,40
For each additional link (52mm) add:- €1,20
8mm A4 maillon for connecting to existing bolt. €6,80
Built into any of our bolts:- Add price of bolt.

Chain Belay Extender/10mm & 12mm Ring
Intended as an extender for awkward lower-off placements such as over the lip of an overhang or to give a toproping point over the cliff edge. 8mm long link chain with 45mm I.D. 10mm or 12mm rod ring.

Sold seperately for retrofitting using a maillon or fitted into one of our bolts.



Breaking Strain-Over 25kN
EN959

Chain AISI 316 (A4) Stainless Steel
Ring AISI 304 (A2) or AISI 316 (A4)  Stainless Steel

Order Code                 Description                                                       Price
[C8-10RA2]                200mm chain length with 10mm ring                  €15,83
[C8-12RA2]                200mm chain length with 12mm ring                  €17,56

[C8-10RA4]                200mm chain length with 10mm ring                  €16,30
[C8-12RA4]                200mm chain length with 12mm ring                  €18,12


For each additional link (52mm) add:- €1,20
8mm A4 maillon for connecting to existing bolt. €6,80
Built into any of our bolts or hangers:- Add price of bolt

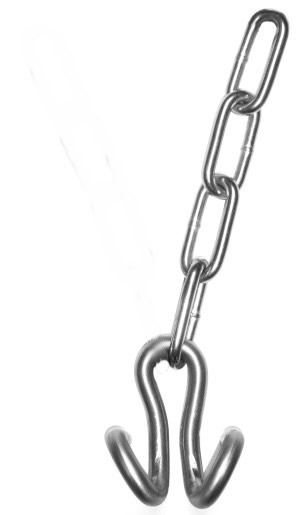

Chain Extender/10mm & 12mm Pigtail


Intended as an extender for awkward lower-off placements such as over the lip of an overhang or to give a toproping point over the cliff edge. 8mm long link chain with our 10mm or 12mm pigtail.

Sold seperately for retrofitting using a maillon or fitted into one of our bolts.

Failure Strain-10mm-15kN, 12mm-35kN (to rope release)
12mm EN959

Chain AISI 316 (A4) Stainless Steel
Pigtail AISI 304 (A2) or AISI 316 (A4) Stainless Steel

Order Code           Description                                                        Price
[C8-10PA2]               200mm chain length with 10mm pigtail                €14,89
[C8-12PA2]               200mm chain length with 12mm pigtail                €16,34

[C8-10PA4]               200mm chain length with 10mm pigtail                €15,74
[C8-12PA4]               200mm chain length with 12mm pigtail                €17,34


For each additional link (52mm) add:- €1,20
8mm A4 maillon for connecting to existing bolt. €6,80
Built into any of our bolts or hangers:- Add price of bolt.

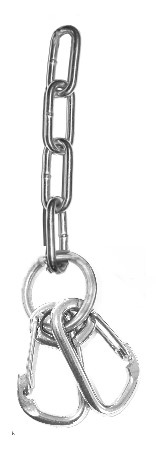

Chain Extender 1 or 2 x 10/12mm Wiregate S.S. Karabiners

Note. These karabiners are now supplied with a bent gate for easier clipping, see Karabiners in Maillons page of this catalogue.

For awkward lower-off placements such as over the lip of an overhang or to give a toproping point over the cliff edge.8mm long link chain with captive10mm or 12mm stainless wiregate karabiner(s).

Single karabiners are fitted into the lower chain link. (Single karabiners should NOT be provided for top-roping, use double ones for safety.)

Double karabiners are joined into the chain using an 8mm welded ring .

Sold seperately for retrofitting using a maillon or fitted into one of our bolts. Any length available.


Breaking Strain 10mm- 30kN, 12mm-40kN

EN959

Chain AISI 316 (A4) Stainless Steel
Karabiner AISI 316 (A4) Stainless Steel

Order Code           Description                                                                                     Price

[C8-10K1]              200mm chain + 1 x 10mm wiregate Karabiner                               €23,99
[C8-10K2]             150mm chain + 8mm ring + 2 x 10mm wiregate Karabiner              €33,97

[C8-12K1]              200mm chain + 1 x 12mm wiregate Karabiner                               €28,99
[C8-12K2]             150mm chain + 8mm ring + 2 x 12mm wiregate Karabiner              €44,97


For each additional link (52mm) add:- €1,20
8mm A4 maillon for connecting to existing bolt. €6,80
Built into any of our bolts or hangers:- Add price of bolt.
